Sieger Sensepoint Pengesan Gas Mudah Terbakar & Toksik

ID produk: 9021 | Jenama: Honeywell | Harga: Atas permintaan

Matriks nombor bahagian

Tapis mengikut HT, mudah terbakar standard, atau toksik/oksigen.

Indeks penuhOn-page matrix

Foto produk

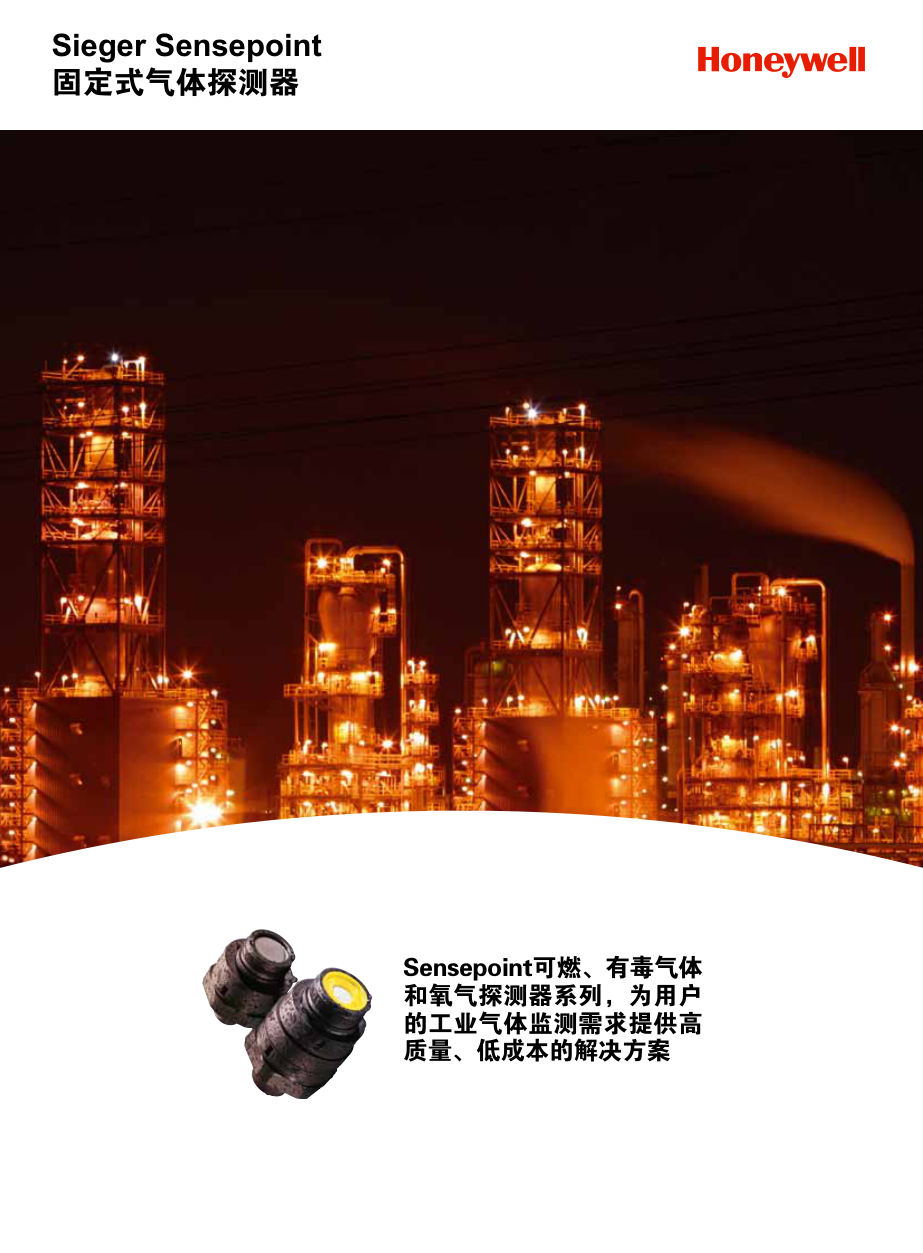

Sieger Sensepoint Pengesan Gas Mudah Terbakar & Toksik
Three familiesHT flammable · standard flam. · toxic / oxygen
Industrial outputsFlam. mV bridge; toxic/O₂ 2-wire 4–20 mA
Hazardous areasExd/Exe boxes; ATEX / IECEx; IP65/66
Thread optionsM20 / M25 / M26 / ¾″ NPT

Specification figures

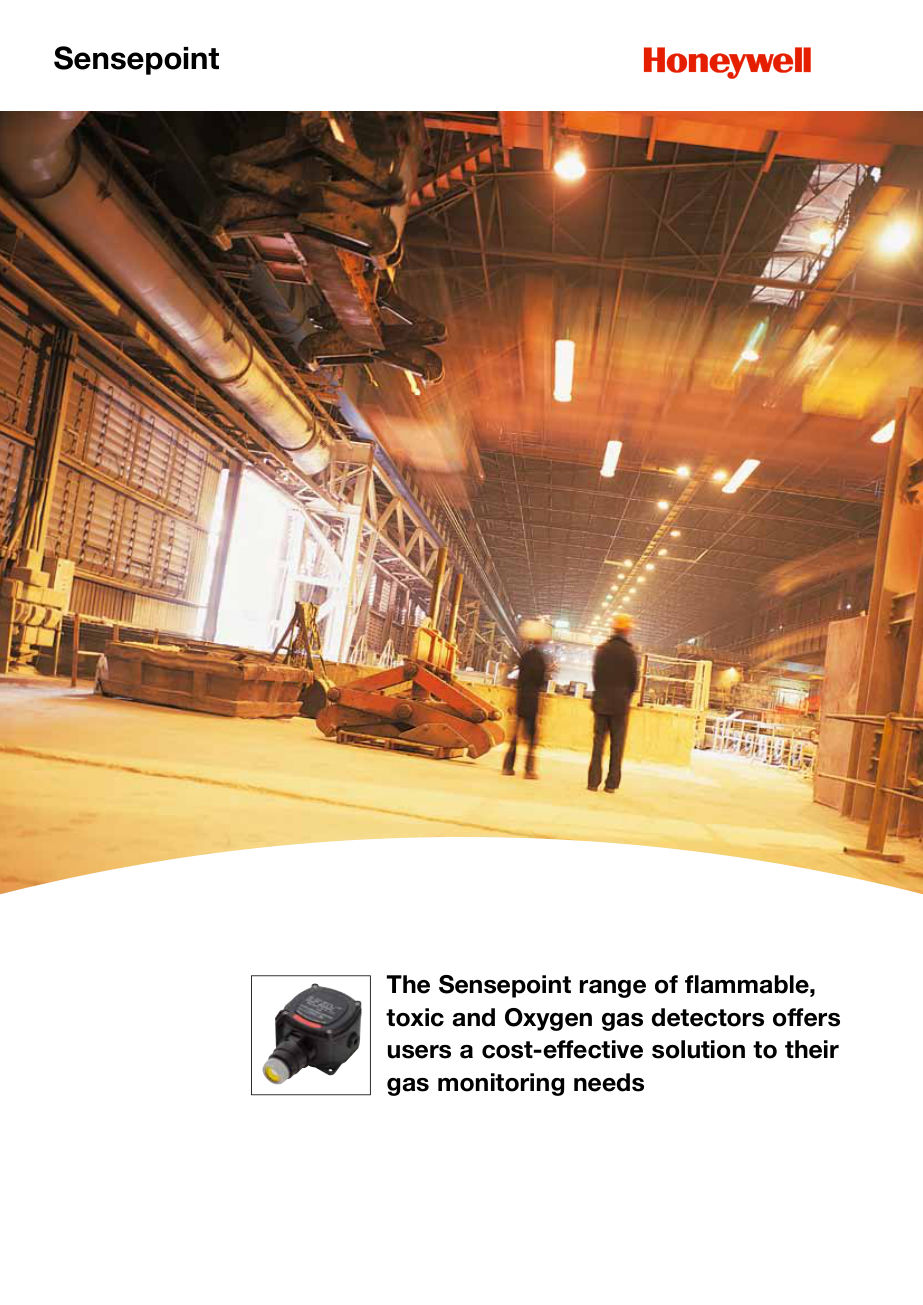

Sensepoint datasheet cover
Sensepoint datasheet cover

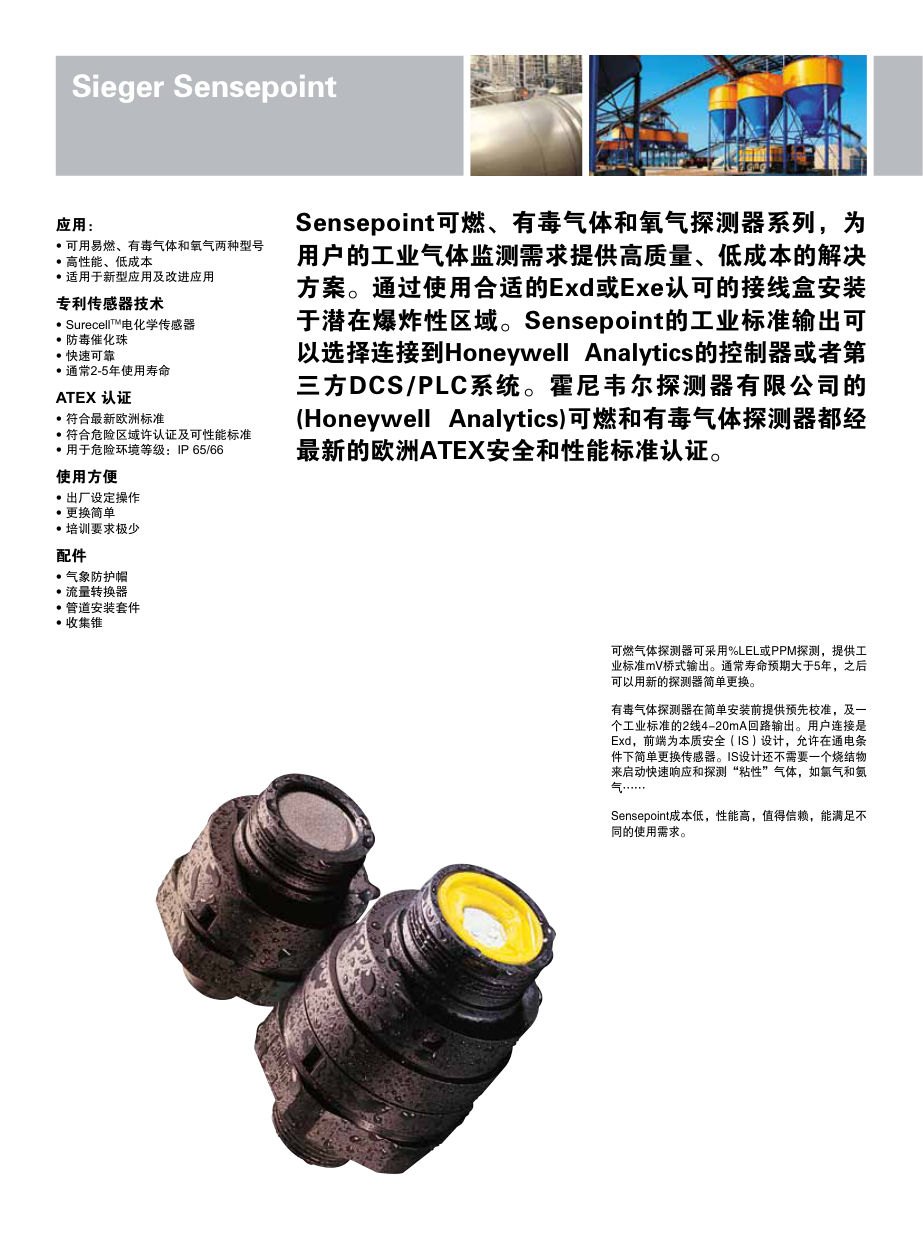

Flammable / toxic / oxygen overview
Flammable / toxic / oxygen overview

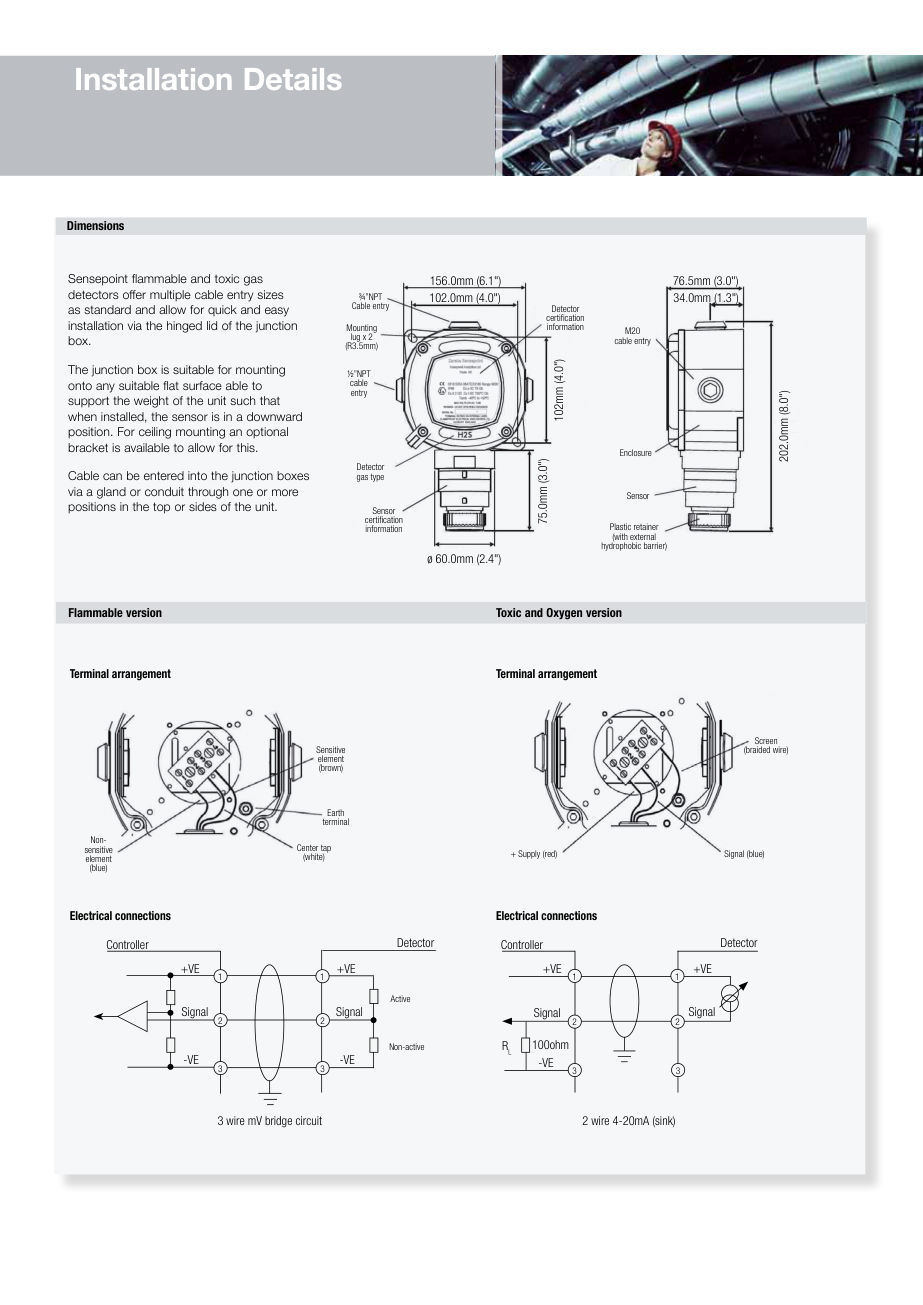

Dimensions: flammable vs toxic/oxygen
Dimensions: flammable vs toxic/oxygen

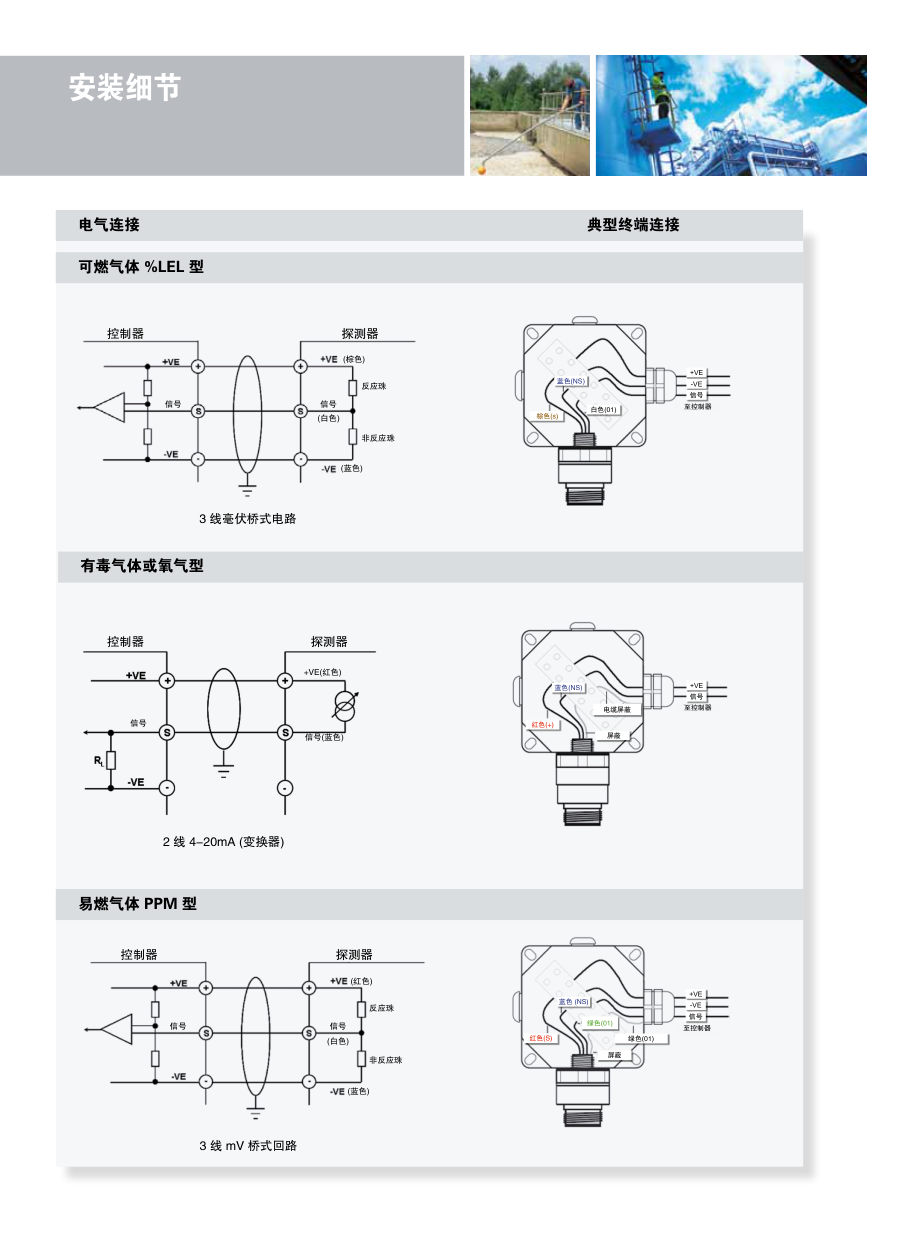

Wiring: mV bridge and 4–20 mA
Wiring: mV bridge and 4–20 mA

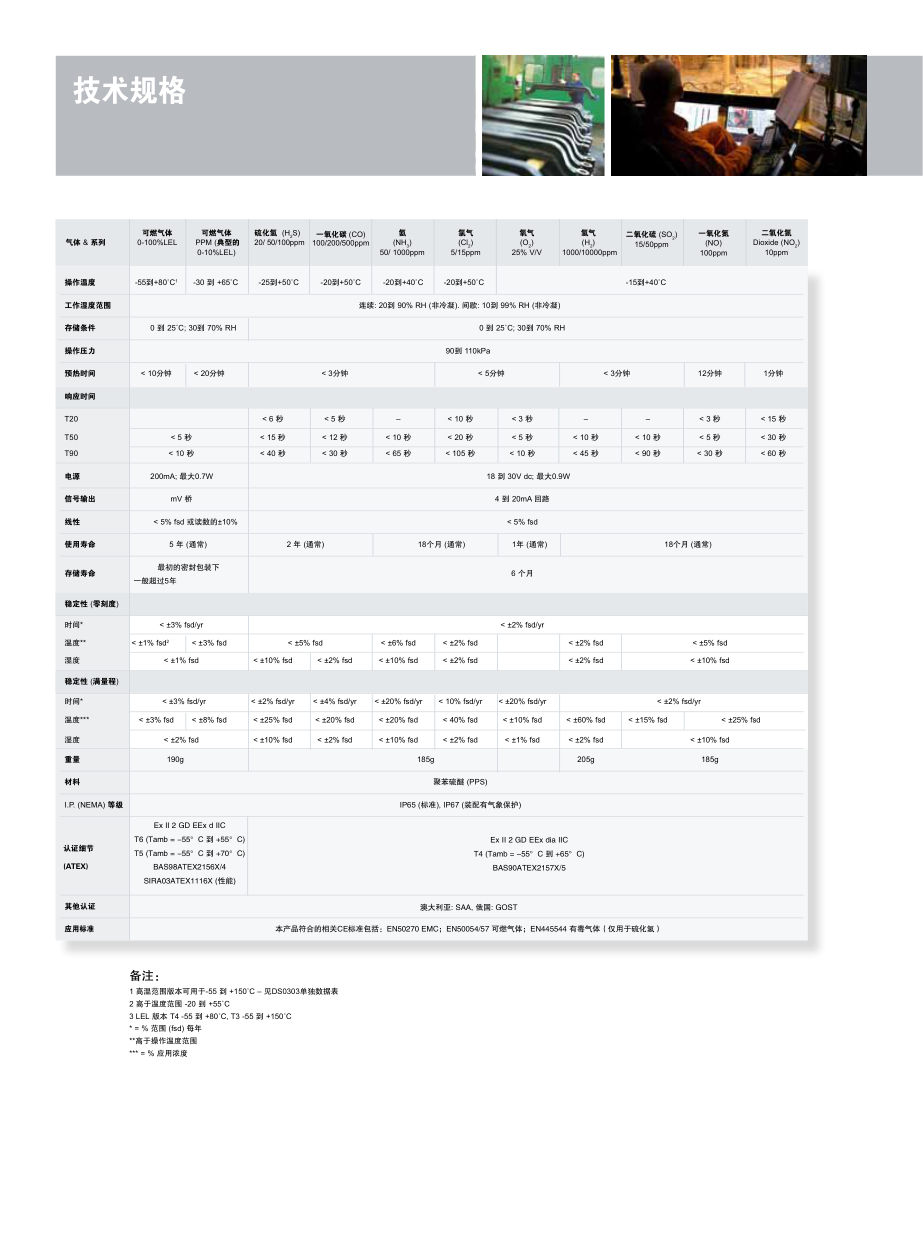

Technical summary
Technical summary

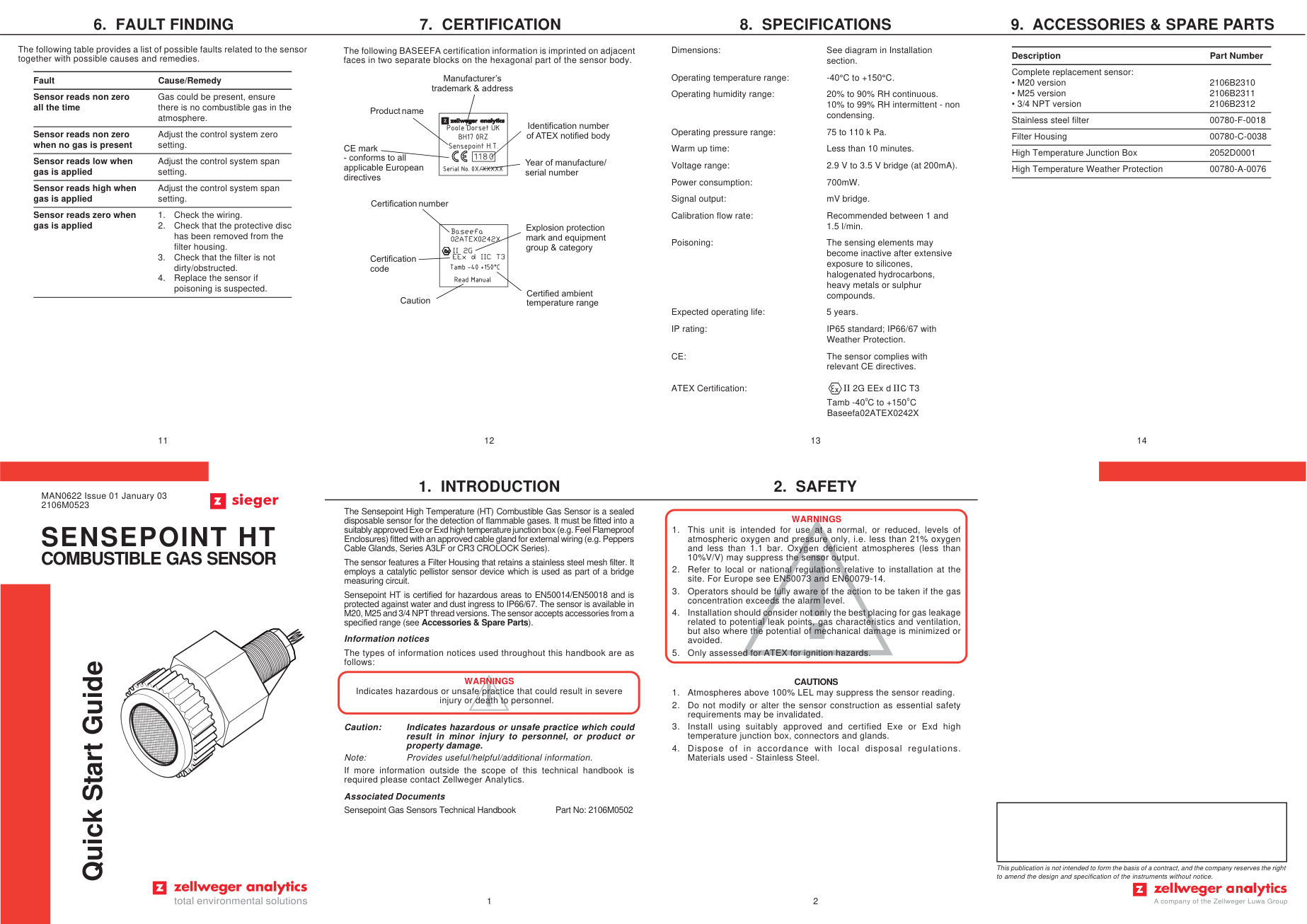

Sensepoint HT high-temperature manual
Sensepoint HT high-temperature manual

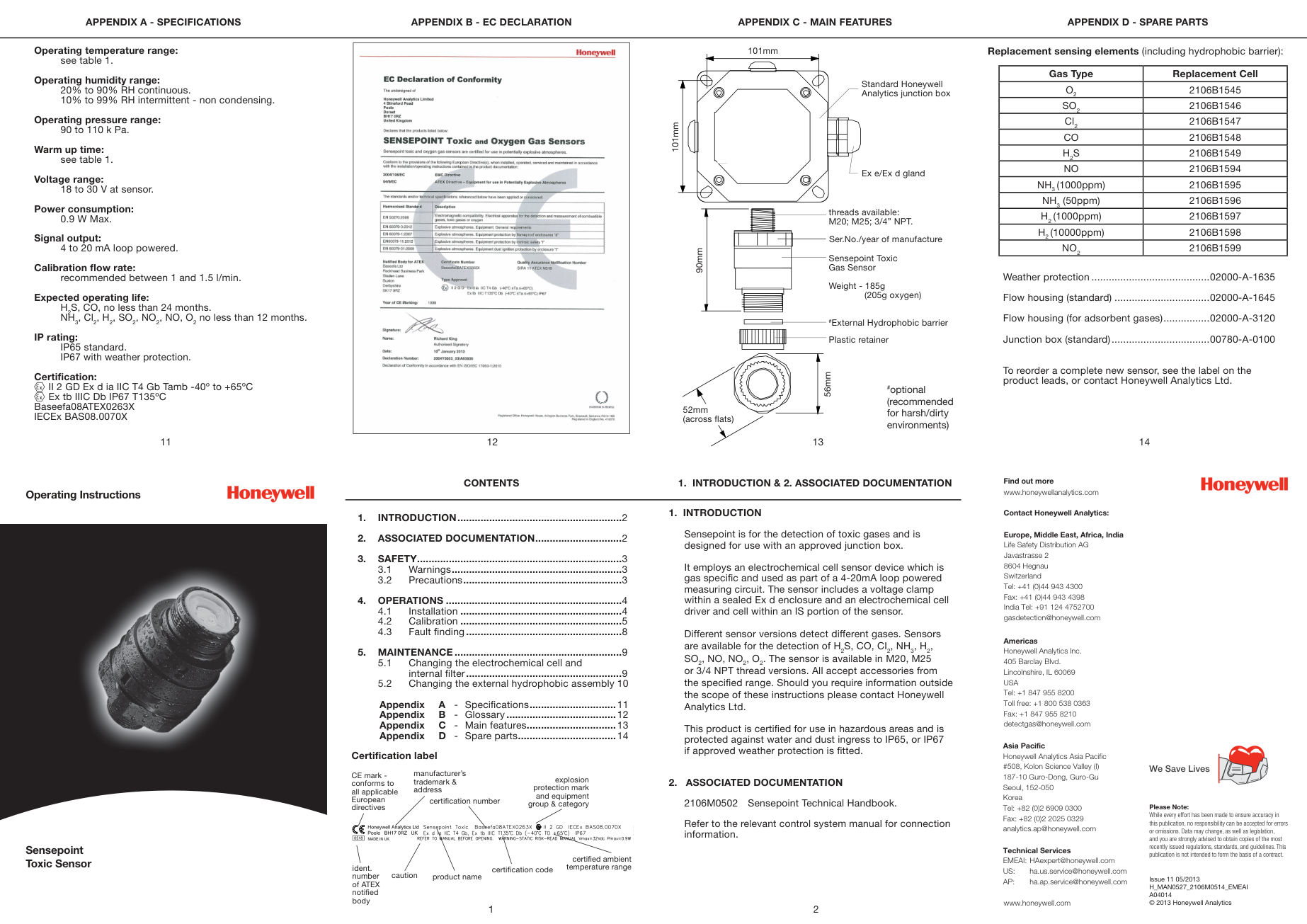

Toxic sensor operating guide
Toxic sensor operating guide

Gambaran keseluruhan

Pengesan Sensepoint Sieger untuk gas mudah terbakar, toksik dan oksigen — penyelesaian berkualiti tinggi, kos efektif. Pasang dengan kotak simpang Exd/Exe; output standard industri ke pengawal Honeywell atau DCS/PLC.

Tiga keluarga: HT mudah terbakar, mudah terbakar standard, toksik/oksigen.

Ciri

  • Flammable, toxic and oxygen variants for new-build and retrofit
  • Proven sensors: Surecell™ electrochemical and poison-resistant catalytic beads; typical 2–5 year life
  • Hazardous-area approvals (ATEX etc.); IP65/66
  • Factory set-up, simple replacement, minimal training
  • Accessories: weather housing, flow adaptor, duct kit, collector cone, etc.

Spesifikasi utama

ItemValue
SeriesSieger Sensepoint (flam. / HT flam. / toxic & O₂)
GasesFlammable %LEL or ppm; H₂S, CO, NH₃, Cl₂, SO₂, NO, NO₂, H₂, O₂, etc.
PrincipleCatalytic (flam./HT); electrochemical (toxic/O₂)
OutputFlam.: 3-wire mV bridge; toxic/O₂: 2-wire 4–20 mA
ThreadsM20, M25, M26 (some flam.), ¾″ NPT
IngressIP65 / IP66
Junction boxCertified Exd or Exe boxes (optional earth continuity plate)
ApprovalsATEX / IECEx (flam., toxic, HT); selected CSA; EU DoC
EnvironmentIndoor/outdoor hazardous industrial areas (see manuals)

Kelulusan & pensijilan

Hanya pratonton halaman pertama beresolusi rendah dan sedikit kabur. PDF jelas rasmi diberikan selepas pembelian. Tiada muat turun sijil di halaman ini.

IECEx · Mudah terbakar
IECEx · Mudah terbakarMuka depan IECEx BAS 08.0068X untuk sensor mudah terbakar Sensepoint.
ATEX · Mudah terbakar
ATEX · Mudah terbakarMuka depan Baseefa08ATEX0265X EC-Type untuk Sensepoint mudah terbakar.
IECEx · Toksik / O₂
IECEx · Toksik / O₂IECEx BAS 08.0070X untuk sensor toksik dan oksigen Sensepoint.
ATEX · Toksik / O₂
ATEX · Toksik / O₂Baseefa08ATEX0263X EC-Type untuk Sensepoint toksik / oksigen.
ATEX · HT mudah terbakar
ATEX · HT mudah terbakarBaseefa08ATEX0264X untuk sensor mudah terbakar suhu tinggi Sensepoint HT.
CE · Sensor HT
CE · Sensor HTMuka depan Pengisytiharan Pematuhan CE untuk sensor Sensepoint HT.
EU DoC · Toksik / O₂
EU DoC · Toksik / O₂Pengisytiharan Pematuhan EU untuk Sensepoint toksik dan oksigen.
ATEX · Kotak simpang
ATEX · Kotak simpangSira04ATEX3018 EC-Type untuk kotak simpang Sensepoint.
ATEX · Kotak simpang Zeta
ATEX · Kotak simpang ZetaSira06ATEX3153 untuk kotak simpang FEEL Range 2000 / Zeta.

Matriks nombor bahagian

Tapis mengikut HT, mudah terbakar standard, atau toksik/oksigen.

Nombor bahagianKeluargaGasJulatBenangKelulusanPenerangan
2106B2310 Sensor mudah terbakar HTLEL / Flam.—M20ATEXSensepoint HT Flammable Sensor (ATEX) M20
2106B2311 Sensor mudah terbakar HTLEL / Flam.—M25ATEXSENSEPOINT HGH TMP CMB SNSR M25 ATEX
2106B2312 Sensor mudah terbakar HTLEL / Flam.—3/4" NPTATEXSensepoint HT Flammable Sensor (ATEX) 3/4 NPT
2106B1200 Sensor mudah terbakar standardLEL / Flam.0–100 LELM20ATEXSENSEPOINT 0-100LEL COMB M20 (ATEX)
2106B1201 Sensor mudah terbakar standardLEL / Flam.0–100 %LELM25—SENSEPOINT 0-100%LEL COMBUSTIBLE M25
2106B1202 Sensor mudah terbakar standardLEL / Flam.0–100 % LELM26—Sensepoint 0-100% LEL Flam. Sensor M26
2106B1203 Sensor mudah terbakar standardLEL / Flam.—M26—Sensepoint Flammable M26 VQ1AB pellistor
2106B1204 Sensor mudah terbakar standardLEL / Flam.0–100 LEL3/4" NPTATEXSENSEPOINT 0-100LEL COMB 34NPT ATEX
2106B1205 Sensor mudah terbakar standardLEL / Flam.0–10 % LEL——SENSEPOINT PPM (0-10% LEL) COMB SEN
2106B1206 Sensor mudah terbakar standardLEL / Flam.—M25—Sensepoint ppm Flam. Sensor M25*
2106B1209 Sensor mudah terbakar standardLEL / Flam.—3/4" NPT—Sensepoint ppm Flam. Sensor 34NPT*
2106B1400 Sensor toksik & oksigenH₂S0–20 PPMM20—Sensepoint H2S 0-20 ppm Toxic Sensor M20
2106B1401 Sensor toksik & oksigenH₂S0–50 PPMM20—Sensepoint H2S 0-50 ppm Toxic Sensor M20
2106B1402 Sensor toksik & oksigenH₂S0–100 PPMM20ATEXSENSEPOINT H2S 0-100PPM M20 (ATEX)
2106B1405 Sensor toksik & oksigenCO0–100 PPMM20—Sensepoint CO 0-100 ppm Toxic Sensor M20
2106B1406 Sensor toksik & oksigenCO0–200 PPM——SENSEPOINT CO 0-200 PPM TOXIC SENSOR
2106B1407 Sensor toksik & oksigenCO0–500 PPMM20—Sensepoint CO 0-500 ppm Toxic Sensor M20
2106B1410 Sensor toksik & oksigenCl₂0–5 PPM——SENSEPOINT CL2 0-5 PPM TOXIC SENSOR
2106B1411 Sensor toksik & oksigenCl₂0–15 PPMM20—Sensepoint Cl2 0-15 ppm Toxic Sensor M20
2106B1413 Sensor toksik & oksigenNH₃0–50 PPMM20—Sensepoint NH3 0-50 ppm Toxic Sensor M20
2106B1414 Sensor toksik & oksigenNH₃0–1000 PPMM20—Sensepoint NH3 0-1000 ppm Toxic Sensor M20
2106B1415 Sensor toksik & oksigenNH₃0–100 PPMM20—Sensepoint NH3 0-100 ppm Toxic Sensor M20
2106B1416 Sensor toksik & oksigenH₂—M20ATEXSENSEPOINT 1000PPM H2 M20 (ATEX)
2106B1417 Sensor toksik & oksigenH₂0–10000 PPMM20—Sensepoint H2 0-10000 ppm Toxic Sensor M20
2106B1418 Sensor toksik & oksigenNO0–100 PPMM20—Sensepoint NO 0-100 ppm Toxic Sensor M20
2106B1420 Sensor toksik & oksigenSO₂0–15 PPMM20—Sensepoint SO2 0-15 ppm Toxic Sensor M20
2106B1421 Sensor toksik & oksigenSO₂0–50 PPMM20—Sensepoint SO2 0-50 ppm Toxic Sensor M20
2106B1422 Sensor toksik & oksigenNO₂0–10 PPMM20—Sensepoint NO2 0-10 ppm Toxic Sensor M20
2106B1432 Sensor toksik & oksigenO₂0–25 %v/vM20—Sensepoint O2 25% VV Toxic Sensor M20
2106B1500 Sensor toksik & oksigenH₂S0–20 PPMM25—Sensepoint H2S 0-20 ppm Toxic Sensor M25
2106B1501 Sensor toksik & oksigenH₂S0–50 PPMM25—Sensepoint H2S 0-50 ppm Toxic Sensor M25
2106B1502 Sensor toksik & oksigenH₂S0–100 PPMM25—Sensepoint H2S 0-100 ppm Toxic Sensor M25
2106B1505 Sensor toksik & oksigenCO0–100 PPMM25—Sensepoint CO 0-100 ppm Toxic Sensor M25
2106B1506 Sensor toksik & oksigenCO0–200 PPMM25—Sensepoint CO 0-200 ppm Toxic Sensor M25
2106B1507 Sensor toksik & oksigenCO0–500 PPMM25—Sensepoint CO 0-500 ppm Toxic Sensor M25
2106B1510 Sensor toksik & oksigenCl₂0–5 PPMM25—Sensepoint Cl2 0-5 ppm Toxic Sensor M25
2106B1511 Sensor toksik & oksigenCl₂0–15 PPMM25—Sensepoint Cl2 0-15 ppm Toxic Sensor M25
2106B1513 Sensor toksik & oksigenNH₃0–50 PPMM25—Sensepoint NH3 0-50 ppm Toxic Sensor M25
2106B1514 Sensor toksik & oksigenNH₃0–1000 PPMM25—Sensepoint NH3 0-1000 ppm Toxic Sensor M25
2106B1515 Sensor toksik & oksigenNH₃0–100 PPMM25—Sensepoint NH3 0-100 ppm Toxic Sensor M25
2106B1516 Sensor toksik & oksigenH₂0–1000 PPMM25—Sensepoint H2 0-1000 ppm Toxic Sensor M25
2106B1517 Sensor toksik & oksigenH₂0–10000 PPMM25—Sensepoint H2 0-10000 ppm Toxic Sensor M25
2106B1518 Sensor toksik & oksigenNO0–100 PPMM25—Sensepoint NO 0-100 ppm Toxic Sensor M25
2106B1520 Sensor toksik & oksigenSO₂0–15 PPMM25—Sensepoint SO2 0-15 ppm Toxic Sensor M25
2106B1521 Sensor toksik & oksigenSO₂0–50 PPMM25—Sensepoint SO2 0-50 ppm Toxic Sensor M25
2106B1522 Sensor toksik & oksigenNO₂0–10 PPMM25—Sensepoint NO2 0-10 ppm Toxic Sensor M25
2106B1532 Sensor toksik & oksigenO₂0–25 %v/vM25—Sensepoint O2 25% VV Toxic Sensor M25
2106B1700 Sensor toksik & oksigenH₂S0–20 PPM3/4" NPT—Sensepoint H2S 0-20 ppm Toxic Sensor 34NPT
2106B1701 Sensor toksik & oksigenH₂S0–50 PPM3/4" NPTATEXSENSEPOINT H2S 0-50PPM 34NPT (ATEX)
2106B1702 Sensor toksik & oksigenH₂S0–100 PPM3/4" NPT—Sensepoint H2S 0-100 ppm Toxic Sensor 34NPT
2106B1706 Sensor toksik & oksigenCO0–200 PPM3/4" NPT—Sensepoint CO 0-200 ppm Toxic Sensor 34NPT
2106B1707 Sensor toksik & oksigenCO0–500 PPM3/4" NPT—Sensepoint CO 0-500 ppm Toxic Sensor 34NPT
2106B1710 Sensor toksik & oksigenCl₂0–5 PPM3/4" NPT—Chlorine (Cl2) 0-5 ppm 34NPT
2106B1711 Sensor toksik & oksigenCl₂0–15 PPM3/4" NPT—Sensepoint Cl2 0-15 ppm Toxic Sensor 34NPT
2106B1713 Sensor toksik & oksigenNH₃0–50 PPM3/4" NPTATEXSENSEPOINT NH3 0-50PPM 34NPT (ATEX)
2106B1714 Sensor toksik & oksigenNH₃0–1000 PPM3/4" NPT—Sensepoint NH3 0-1000 ppm Toxic Sensor 34NPT
2106B1715 Sensor toksik & oksigenNH₃0–100 PPM——SENSEPOINT NH3 0-100 PPM 34 NPT
2106B1718 Sensor toksik & oksigenNO0–100 PPM3/4" NPT—Sensepoint NO 0-100 ppm Toxic Sensor 34NPT
2106B1730 Sensor toksik & oksigenO₂0–25 %v/v3/4" NPT—Oxygen (O2) 25% VV 34NPT
2106B1732 Sensor toksik & oksigenO₂0–25 %v/v3/4" NPT—Sensepoint O2 25% VV Toxic Sensor 34NPT
2106B1800 Sensor toksik & oksigenH₂S0–20 PPM3/4" NPTCSASensepoint H2S 0-20 ppm Toxic Sensor 34NPT CSA
2106B1801 Sensor toksik & oksigenH₂S0–50 PPM3/4" NPTCSASensepoint H2S 0-50 ppm Toxic Sensor 34NPT CSA
2106B1802 Sensor toksik & oksigenH₂S0–100 PPM3/4" NPTCSASensepoint H2S 0-100 ppm Toxic Sensor 34NPT CSA
2106B1805 Sensor toksik & oksigenCO0–100 PPM3/4" NPTCSASensepoint CO 0-100 ppm Toxic Sensor 34NPT CSA
2106B1806 Sensor toksik & oksigenCO0–200 PPM3/4" NPTCSASensepoint CO 0-200 ppm Toxic Sensor 34NPT CSA
2106B1807 Sensor toksik & oksigenCO0–500 PPM3/4" NPTCSASensepoint CO 0-500 ppm Toxic Sensor 34NPT CSA
2106B1810 Sensor toksik & oksigenCl₂0–5 PPM3/4" NPTCSASensepoint Cl2 0-5 ppm Toxic Sensor 34NPT CSA
2106B1811 Sensor toksik & oksigenCl₂0–15 PPM3/4" NPTCSASensepoint Cl2 0-15 ppm Toxic Sensor 34NPT CSA
2106B1813 Sensor toksik & oksigenNH₃0–50 PPM3/4" NPTCSASensepoint NH3 0-50 ppm Toxic Sensor 34NPT CSA
2106B1814 Sensor toksik & oksigenNH₃0–1000 PPM3/4" NPTCSASensepoint NH3 0-1000 ppm Toxic Sensor 34NPT CSA
2106B1815 Sensor toksik & oksigenNH₃0–100 PPM3/4" NPTCSASensepoint NH3 0-100 ppm Toxic Sensor 34NPT CSA
2106B1816 Sensor toksik & oksigenH₂0–1000 PPM3/4" NPTCSASensepoint H2 0-1000 ppm Toxic Sensor 34NPT CSA
2106B1817 Sensor toksik & oksigenH₂0–10000 PPM3/4" NPTCSASensepoint H2 0-10000ppm Toxic Sensor 34NPT CSA
2106B1818 Sensor toksik & oksigenNO0–100 PPM3/4" NPTCSASensepoint NO 0-100 ppm Toxic Sensor 34NPT CSA
2106B1820 Sensor toksik & oksigenSO₂0–15 PPM3/4" NPTCSASensepoint SO2 0-15 ppm Toxic Sensor 34NPT CSA
2106B1821 Sensor toksik & oksigenSO₂0–50 PPM3/4" NPTCSASensepoint SO2 0-50 ppm Toxic Sensor 34NPT CSA
2106B1822 Sensor toksik & oksigenNO₂0–10 PPM3/4" NPTCSASensepoint NO2 0-10 ppm Toxic Sensor 34NPT CSA
2106B1832 Sensor toksik & oksigenO₂0–25 %v/v3/4" NPTCSASensepoint O2 25% VV Toxic Sensor 34NPT CSA
